Manufactured in USA
Metal Stapling Machine
Specification
The prime reason for the success of this method is the efficiency of wire stapling machines. Wire staplers feed accurately measured lengths of wire directly from a coil...cut and form the wire into staples...then drive the staples through materials at great speed. Legs of the staples penetrate and are clinched as the staple crowns are forced securely against the top surface of the assembly. Speeds up to five staples per second are possible. Thousands of pieces can be fastened before a new coil of wire is needed.

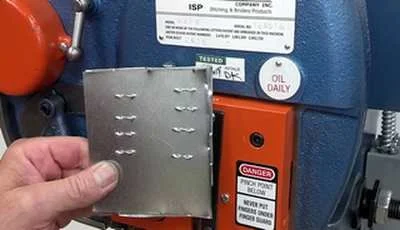

S2F8 Metal Stapling Machine.
A model for every purpose Features which assure perfect stapling and superior machine performance are found in every stapler.
All parts are manufactured to rigid specifications for smoothest possible operation, long life and perfect interchangeability.
Many operating parts can be reversed to double service life.
Quiet operation.
Low maintenance.
Models are offered for virtually every purpose: for floor or bench mounting, for integration into other basic production line machinery, and for specially-engineered equipment.
42-1/2"
67-1/2"
34" x 19-1/2"
440 LBS
540 LBS
1-7/16"
7/16"
#17, #18, #20
1/3 HP
316 stitch/min
Standard Height Of Machine Stitch To Floor
Standard Height Of Machine Over All
Floor Space Over All
Net Weight
Crated Weight
Gap Clearance Between Stapling Head And Top Of Work
Width Of Staple Measured Between Legs Of Staple
Wire Size
Motor Size
Operating Speed
